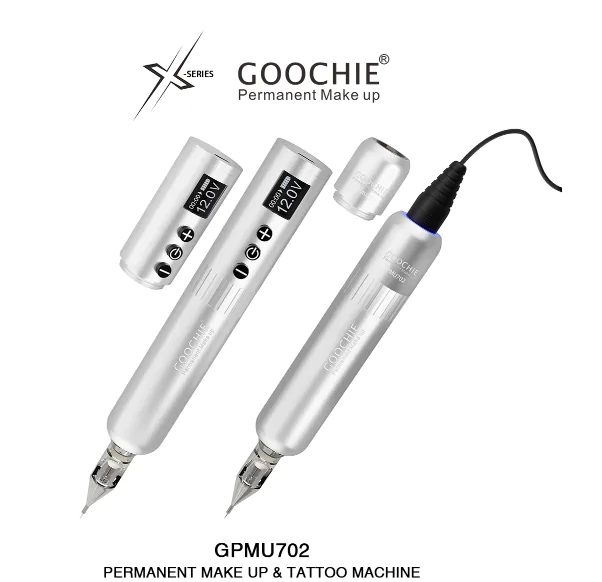

#GPMU702 Portable Wired & Wireless Tattoo Machine

The #GPMU702 Portable Wired & Wireless Tattoo Machine is a compact, high-performance device designed for professional tattoo and permanent makeup artists who require flexibility, control, and portability. Powered by a 1725 coreless motor delivering 6660 rpm at 8V, it provides smooth, consistent output for precise pigment implantation.

With a 2.5 mm stroke, the machine is suitable for detailed work across a variety of tattoo and PMU applications. It features dual wired and wireless operation, supported by a 750 mAh removable battery pack, allowing uninterrupted workflow in both studio and mobile settings. At 8V, the machine offers approximately 3 hours of continuous use.

An integrated OLED monochrome display provides clear visibility of operating settings, while adjustable output from 3–7V and an operating voltage range of 4–12V allow fine control for different techniques. The forced start function (9V for 0.3 seconds) ensures reliable startup, even with larger needle groupings.

Charging is fast and convenient via USB Type-C, and with a lightweight design of just 93 g, the GPMU702 reduces hand fatigue during extended sessions.

Specifications:
Product No.: #GPMU-702
Motor: 1725 coreless motor, 6660 rpm at 8V
Stroke: 2.5 mm
Battery: 750 mAh removable battery
Usage: Wired and wireless
Working time: Approx. 3 hours at 8V
Display: OLED monochrome
Output voltage: 3–7V
Operating voltage: 4–12V
Forced start: 9V for 0.3 seconds
Charging port: USB Type-C
Weight: 93 g

A versatile, lightweight machine built for precision, portability, and professional reliability.
