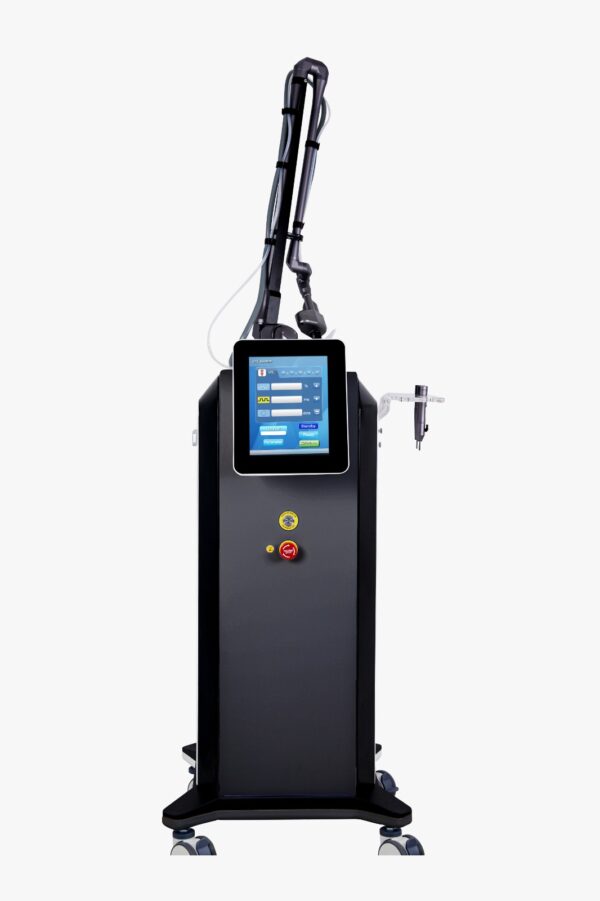

Fractional CO2 Laser

Professional Skin Resurfacing & CO2 Surgical Platform

The Fractional CO2 Laser is a high-performance medical aesthetic system designed for advanced skin resurfacing, collagen remodelling, scar revision, and minor dermatological procedures.

Operating at a 10,600nm wavelength, this powerful platform precisely targets water within the skin to create controlled microthermal zones. This process stimulates collagen production, tightens tissue, improves texture, and supports long-term skin regeneration.

Engineered for aesthetic clinics, dermatology practices, and advanced skin professionals, this multifunctional system delivers precision, versatility, and strong clinical results with customisable depth and intensity settings.

---

Advanced Treatment Modes

Shallow Mode

Designed for superficial fractional resurfacing within the epidermis, encouraging cellular turnover, improving tone, refining pores, and enhancing overall skin brightness.

Deep Mode

Targets deeper dermal layers to stimulate collagen remodelling and improve the appearance of wrinkles, acne scars, and textural irregularities.

Mixed Mode

A dual-layer precision setting that simultaneously treats superficial and deeper skin layers. This intelligent combination supports tightening, resurfacing, and collagen stimulation while maintaining controlled downtime.

---

Key Advantages

• 3-in-1 versatility with Fractional and Surgical capabilities
• No consumables required, reducing long-term operating costs
• Seven adjustable scan shapes for customised treatment coverage
• High-frequency energy output for efficient treatment delivery
• Android-based touchscreen interface for intuitive operation
• Flexible 7-articulated arm for precise laser positioning
• Designed for clinical performance and business profitability

---

Treatment Applications

Fractional Skin Treatments

• Skin resurfacing
• Skin rejuvenation
• Fine lines and wrinkle reduction
• Acne scar revision
• Surgical scar remodelling
• Stretch mark improvement
• Texture refinement
• Collagen stimulation

CO2 Surgical Applications

• Wart removal
• Mole removal
• Benign lesion removal
• Skin tag removal
• Minor dermatological procedures

---

Clinical Technology Highlights

• Wavelength: 10,600nm for deep collagen remodelling
• Premium laser source for stable and consistent energy delivery
• Adjustable dot spacing for customised density control
• Multiple scan methods including normal and random sequence
• Precise control over pulse duration, power, and pattern
• Flexible articulated arm for smooth and accurate application

---

Specifications

Fractional Mode

• Power: Up to 40W
• Modes: Shallow, Deep, Mixed
• Scan Shapes: Triangle, Square, Hexagon, Circle, Ring, Rhombus, Straight Line
• Scan Method: Normal Sequence, Random Sequence
• Dot Distance: 0.2–2.6mm
• Repeat: 0–10
• Interval: 0.0–5.0s
• Wait Time: 1–100ms
• Duration: 0.1–10.0ms

Normal Mode

• Power: Up to 40W
• On Time: 0.5–1000ms
• Off Time: 0.5–1000ms
