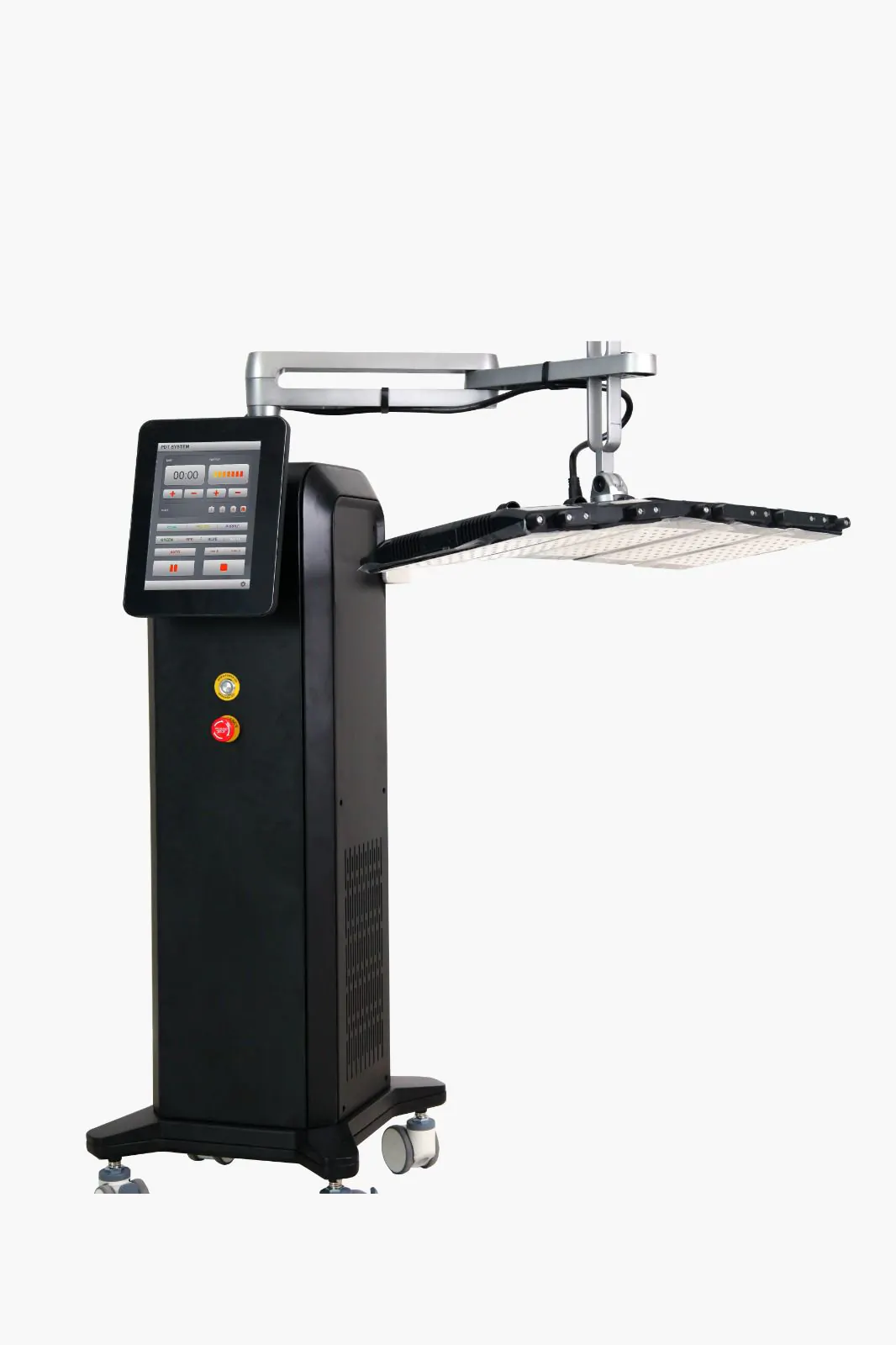

Lumaderm Pro – Medical Grade LED Photodynamic Therapy Device

Lumaderm Pro Medical Grade LED Photodynamic Therapy Device

The Lumaderm Pro Medical Grade LED Photodynamic Therapy Device is a high-performance, multi-wavelength LED system engineered for professional skin treatments. Utilising advanced LED bio-light technology with greater than 99% purity, this device delivers targeted phototherapy across a spectrum of 418nm to 630nm, enabling precise treatment of a wide range of skin concerns.

Designed for clinical environments, the Lumaderm Pro allows practitioners to control irradiance (mW/cm²) and energy delivery (J/cm²), ensuring optimal treatment outcomes for acne, ageing, pigmentation, and overall skin health.

---

Wavelengths & Irradiance Output

---

Energy Output (J/cm²)

Based on a 20-minute treatment (1200 seconds):

• Red 628nm: 31.6 J/cm²
• Green 523nm: 17.3 J/cm²
• Blue 418nm: 14.5 J/cm²
• Yellow 630nm: 25.3 J/cm²
• Yellow 520nm: 31.1 J/cm²
• Cyan 463nm: 44.2 J/cm²
• Purple 463nm: 51.4 J/cm²
• White (combined): up to 37.3 J/cm²

---

Technical Specifications

• Device Name: Lumaderm Pro Medical Grade LED Photodynamic Therapy Device
• Light Source: LED bio-light (99% purity)
• Wavelength Range: 400nm – 630nm
• Output Power: 120W
• Input Voltage: 100–240V, 50/60Hz
• Irradiance Range: 12.1 – 42.8 mW/cm²
• Maximum Energy Output: ~51.4 J/cm²
• Treatment Time: 5–90 minutes adjustable
• Light Emitting Area: 65cm × 22cm
• Operating Modes: Continuous, Pulse, Auto
• Adjustable Intensity: Yes
• Adjustable Arm: Multi-angle, height adjustable
• Weight: 55kg

---

Treatment Applications

• Acne and breakout management
• Anti-ageing and collagen stimulation
• Pigmentation and skin brightening
• Skin repair and post-treatment recovery
• Redness and inflammation reduction
• Improved circulation and cellular metabolism

---

Key Technology Benefits

• Non-invasive and no downtime
• No UV or thermal damage
• Multi-wavelength targeted treatments
• Clinically relevant irradiance levels
• Adjustable energy delivery (J/cm²)
• Large treatment coverage area
• Consistent and repeatable treatment outcomes

---

Why Choose the Lumaderm Pro

The Lumaderm Pro Medical Grade LED Photodynamic Therapy Device stands apart by delivering true therapeutic output, not just cosmetic-level light. With irradiance levels reaching 42.8 mW/cm² and energy delivery exceeding 50 J/cm², this system provides the power and precision required for professional-grade results across a wide range of skin treatments.
